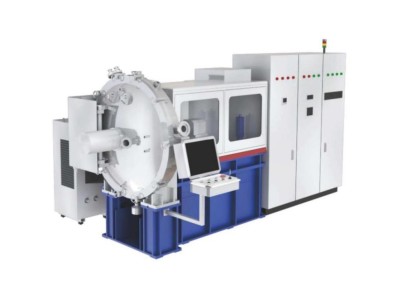

适用高校、科研院所小批量多品种球形金属粉末的快速研发，已为用户定制化开发钛合金、铝合金、高温合金、高熵合金、难熔合金等300余种新材料牌号粉末。
It is suitable for the rapid research and development of small batch and many varieties of spherical metal powder in universities and research institutes, and has customized more than 300 kinds of new materials such as titanium alloy, aluminum alloy, superalloy, high entropy alloy and refractory alloy for users.
主要技术参数Main technical parameters
电极棒工作转速Rotation speed | ～50000 rpm |
电极棒直径Diameter of electrodes | Φ30 mm |
粉末形貌Powder morphology | spherical rate≥95% |
粉末粒度分布Particle size | D50 ≤43μm (IN718) |
氧增量Oxygen increment | ≤100 ppm（IN718） |
生产能力Production capacity | ≥10-15 kg/8h（IN718） |
工作气体Atmosphere | Ar or He |
额定功率Maximum power | 120 kW |
占地面积Floor space | 4 m×3 m×2.5 m3 |
